Easystat Series

Easystat is a universal, multi-stage, programmable, Wi-Fi, color touchscreen thermostat. It also oﬀers enhanced function like proximity and relative humidity sensing on some models. Tactile control knob makes interaction quicker and more ergonomic and precise. Easystat provides precise temperature control and enhanced comfort for your home's heating and cooling system. You can remotely monitor and control heating and cooling system via free mobile app to save energy or improve comfort. It’s a good choice if you travel a lot, own
a vacation house or need to manage an investment property.

Inquiry

Download

Certification Marks

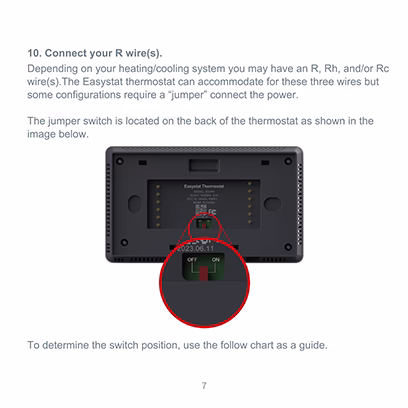

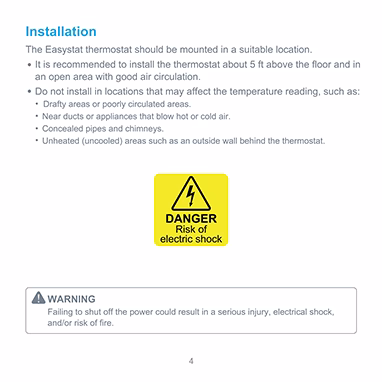

Description Specifications Product Features Application Installation Diagram

Features

Support up to 3H/2C Systems with Emergency Heat
Color TFT Screen
Screwless Terminals
System Mode: Off, Heat, Cool, Auto, Emergency

Fan Mode: On/Auto
Fan Speed: Single Speed/3-Speed
Control Mode: Economic, Comfort and Scheduling
Compressor Protection
Filter Change Indicator
Schedule (4 Periods): Daily, 5-2 or 5-1-1
Daytime Saving Auto Adjustment

Early On
Remote Control by Mobile App
Local Weather Forecast
℉/℃ Switchable
FCC Certificate

Technical Data

Room Temp Accuracy: +2 °F
Environmental:
Operating Temperature Range: 32~113 °F

Storage Temperature Range: 14-140 °F

Relative Humidity Range: 5-95%
Power Supply: 24V AC
Terminations: 20-26 AWG (0.4~0.8mm2) wire, screwless

Maximum Load Current: 0.5 A (per terminal) 1.5 A(combined)

Dim. H x Wx D(mm): 130x77x24
Connectivity: Wi-Fi 2.4GHz
Protection Class: IP30

SPECIFICATIONS

Model	Color	Proximity Sensor	Application	Commun ication	Certificate	FCU/Stage	Power Supply	IP level	Timer
ES-PW	White	yes	AC, Furnace, Heat Pump, Dual fuel, FCU (US)	WIFI(Tuya)	FCC	3H/2C	24VAC	IP30	-
ES-PW	White	~	AC, Furnace, Heat Pump, Dual fuel, FCU (US)	WIFI(Tuya)	FCC	3H/2C	24VAC	IP30	-
ES-PW	White	yes	AC, Furnace, Heat Pump, Dual fuel, FCU (US)	WIFI(Tuya)	FCC	3H/2C	24VAC	IP30	-
ES-PW	White	~	AC, Furnace, Heat Pump, Dual fuel, FCU (US)	WIFI(Tuya)	FCC	3H/2C	24VAC	IP30	-
