BV03 Series Motorized Ball Valve

BV03 series motorized ball valve is applicable to terminal of central air conditioning system and heating system. The valve receives instructions from the thermostat and control the on/off of the medium inside the heat exchange equipment. The thermostat monitors the indoor temperature and give an open
instruction to open the valve if the indoor temperature does not reach the set value., and the medium enters the heat exchange equipment. When the indoor temperature reaches the set value, the thermostat gives a close instruction,
and the valve closes under the drive of the motor inside. By the cooperating of the thermostat and the motorized ball valve, the indoor temperature is kept in a comfortable range and the energy is saved.

Download
Features Specification Installation Diagram Application

Features

IP65, Good dustproof and waterproof
Good thermal isolation between the actuator and the valve body

The actuator is easy to install and disassemble. It can be installed after the installation of equipment and pipeline.Thus theconstruction efficiency is improved
Actuator designed with eccentric structure, and the valve can be installed close to the wall
Remove the actuator, and the valve body can be opened and closed with common tools
The actuator can be assembled in two directions, easier wiring and maintenance
High closing differential pressure, tight closing
Direct way valve, large flow, and no slag blockage
Flexible opening of the valve, prevents water hammer effectively
Once the valve operates in position, the motor does not bear any force. Thus the service life of the motor extends

3 wires, floating on/off control

Specification

Power supply 220V AC.50/60Hz or 24V AC.50/60Hz Material of Main Parts Valve Body: for ged brass
Wattage 6W Ball: Stainless steel
Operation time 12s~18s Stem: brass
Nominal pressure PN20 Seat: PTFE
Shut-off DifferentialPressure 1.0MPa Sealing: EPDM
Medium Hot/cool water, ethylene glycol aqueous solution with concentration s60% Connection Thread NPT
Medium temperature 0°C-95°C External thread BSPP
Control Signal Floating (24VAC), or On/off Internal thread BSPP
Stroke Angular stroke 90 ° Internal thread BSPT
Torque 3Nm Sleeve connection (external thread)
Protection Degree IP65 Structure 2-way, 3-way outlet on bottom, 3-way outlet on side

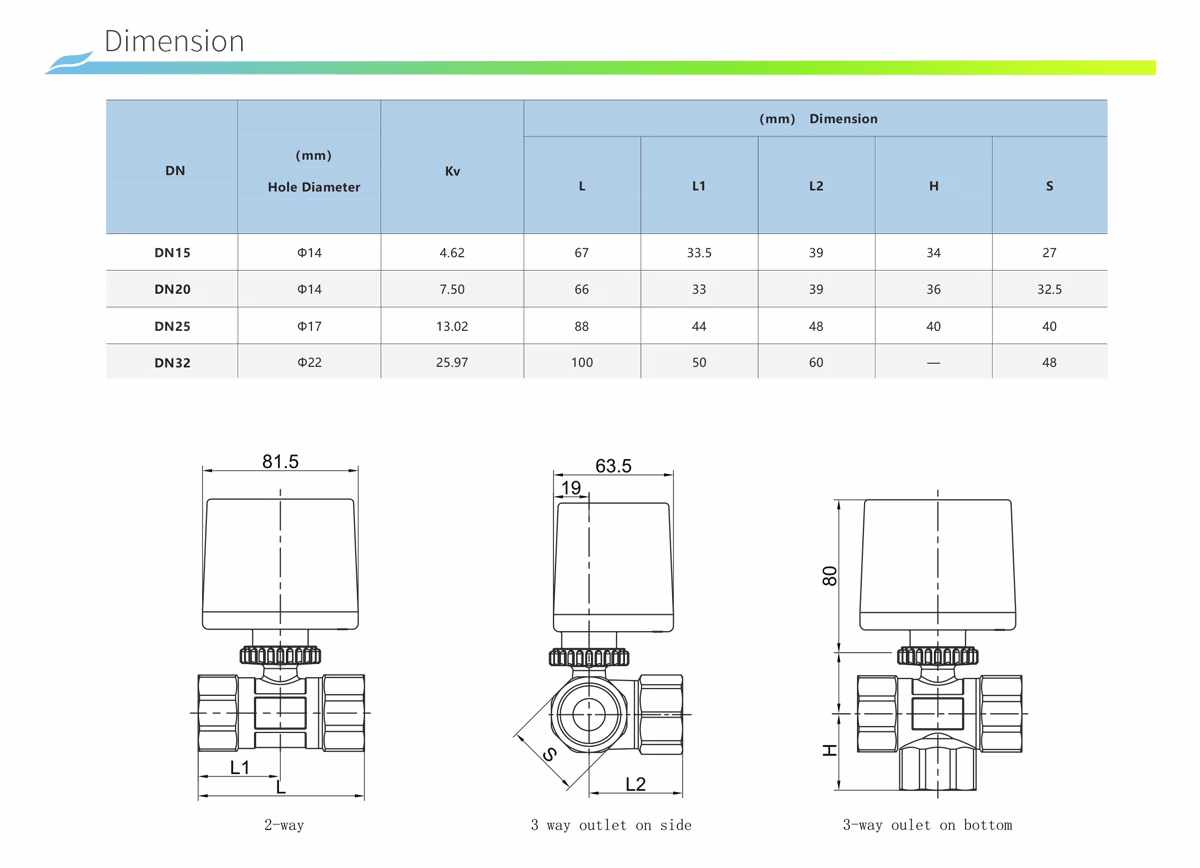

INSTALLATION DIAGRAM
