BV06 Series Motorized Ball Valve

BV06 series motorized ball valve is applicable to terminal of central air conditioning system and heating system. The valve receives instructions from the thermostat and control the on/oﬀ of the medium inside the heat exchange equipment. The thermostat monitors the indoor temperature and give an open
instruction to open the valve if the indoor temperature does not reach the set value., and the medium enters the heat exchange equipment. When the indoor temperature reaches the set value, the thermostat gives a close instruction,
and the valve closes under the drive of the motor inside. By the cooperating of the thermostat and the motorized ball valve, the indoor temperature is kept in a comfortable range and the energy is saved.

Inquiry

Download

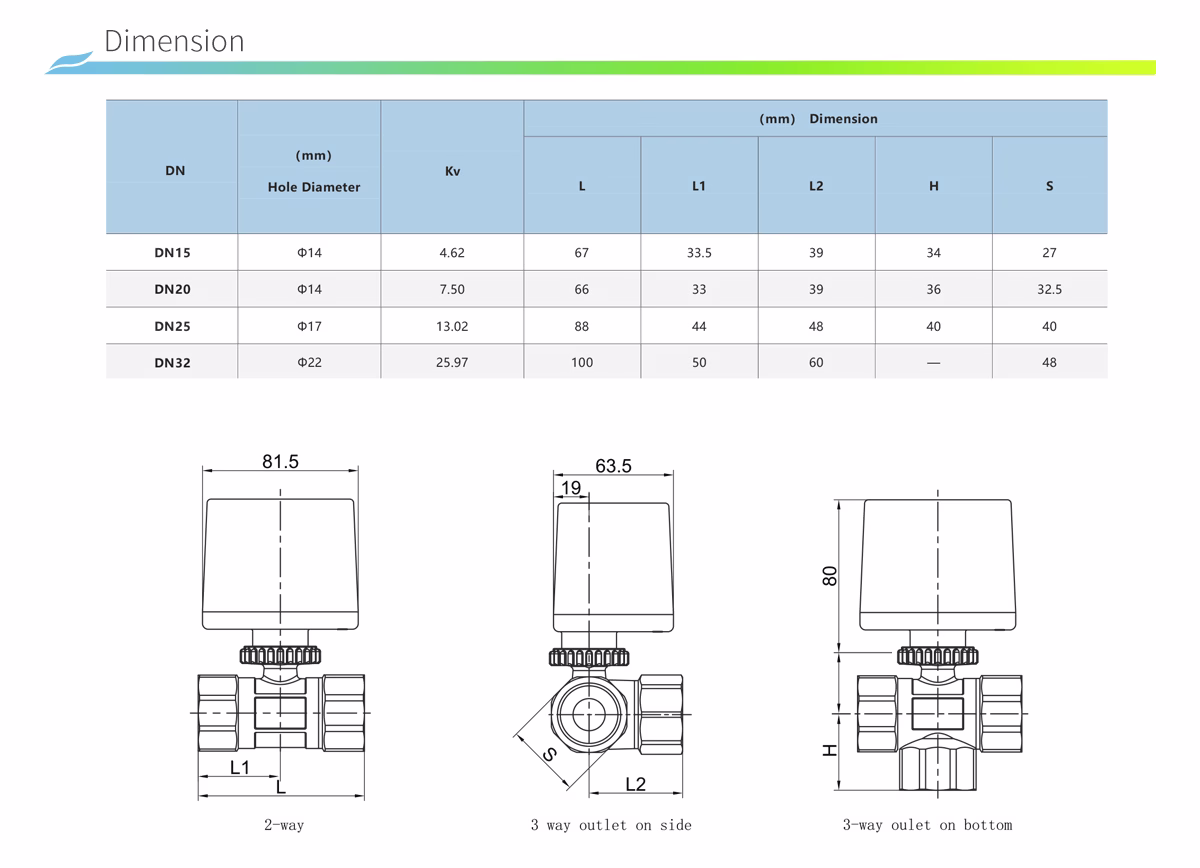

Features Specification Installation Diagram Application

Features

IP65, Good dustproof and waterproof
Good thermal isolation between the actuator and the valve body

The actuator is easy to install and disassemble. It can be installed after the installation of equipment and pipeline.Thus theconstruction efficiency is improved
Actuator designed with eccentric structure, and the valve can be installed close to the wall
Remove the actuator, and the valve body can be opened and closed with common tools
The actuator can be assembled in two directions, easier wiring and maintenance
High closing differential pressure, tight closing
Direct way valve, large flow, and no slag blockage
Flexible opening of the valve, prevents water hammer effectively
Once the valve operates in position, the motor does not bear any force. Thus the service life of the motor extends

3 wires, floating on/off control

Specification

Power supply	220V AC.50/60Hz or 24V AC.50/60Hz	Material of Main Parts	Valve body: forged brass with nickel plated
Wattage	6W		Ball: brass wi th chrome plated
Operation time	15s (50Hz), 12s (60Hz)		Stem: brass
Nominal pressure	PN20		Seat: PTFE
Shut-off DifferentialPressure	1.0MPa		Sealing: EPDM
Medium	Hot/cool water, ethylene glycol aqueous solution with concentration s60%	Connection Thread	NPT
Medium temperature	0°C-95°C		External thread BSPP
Control Signal	Floating (24VAC), or On/off		Internal thread BSPP
Stroke	Angular stroke 90 °		Internal thread BSPT
Torque	3Nm		Sleeve connection (external thread)
Protection Degree	IP65	Structure	2-way, 3-way outlet on bottom, 3-way outlet on side
