EBV Series Cast Iron Motorized Regulation Ball Valve

EBV series cast iron motorized regulating ball valve is applicable to central air conditioning system or heating system. According to the floating-point or proportional signal (DC 0/2~10V or DC 4/0~20- mA) from PLC, DDC and thermostat, the opening of the valve is adjusted to control the flow of the
medium in the pipeline and to meet the accurate control of the flow, pressure, and temperature.

Download
Features Matching of Actuator & Valve Body Specifications of Actuator Specifications of Valve Body Dimension

Features

On/off: 2 or 3 float point control
Analogue: proportional control
DC motor adopted
Equal percentage flow-rate characteristics
Manual operation available for all standard models
Plastic connection part, the heat on the valve body is not easily transmitted to the actuator
Passive feedback, 2 position feedback switches are optional
DN65-DN150: Wafer Connection

Matching of Actuator & Valve Body

Torque of Actuator 16Nm 16Nm 24Nm 24Nm 32Nm
DN DN65 DN80 DN100 DN125 DN150
Shut-off Differential Pressure 0.5MPa 0.5MPa 0.5MPa 0.5MPa 0.5MPa

Specifications of Actuator

Torque of Actuator 16Nm 24Nm 32Nm
Operation Time with 0 Load 101~111s 105~115s 102~112s
Power Supply Analogue: 24VAC/DC    On/off: 24VAC/DC, 220VAC
Frequency 50/60Hz
Power Consumption 4.5W
Cable 3A    250VAC
Control Signal On/Off: 2 points or 3 points, Analogue: 4(0)...20mA DC0(2)...10V
Rotation Angle 0~90°
Angel Limited 5°...85° (each step 5°)
Rated Current of Aux. Switch 3A 250VAC, to be customized (2 set of passive feedbacks, for on/off type only)
Life Span >60,000 times rotation (under rated load)
Noise <45dB
Protection Degree IP54
Ambient Temperature -10 ~ +50℃
Ambient humidity 5 ~ 95%RH
Storage Temperature -30 ~ +60℃

Specifications of Valve Body

DN DN65 DN80 DN100 DN125 DN150
Kv 63 100 160 250 400
Angle Range 0~90°
Maximum Differential Pressure 0.5MPa
Nominal Pressure 1.6MPa
Flow Characteristics Equal percentage
Leakage Rate ≤max flow *0.01%
Medium Temperature 0℃-95℃
Connection Wafer Connection
Material of Main Parts Valve Body: Ductile Cast Iron
Valve Core: Stainless Steel
Seat: Graphite reinforced PTFE
Stem: Stainless Steel

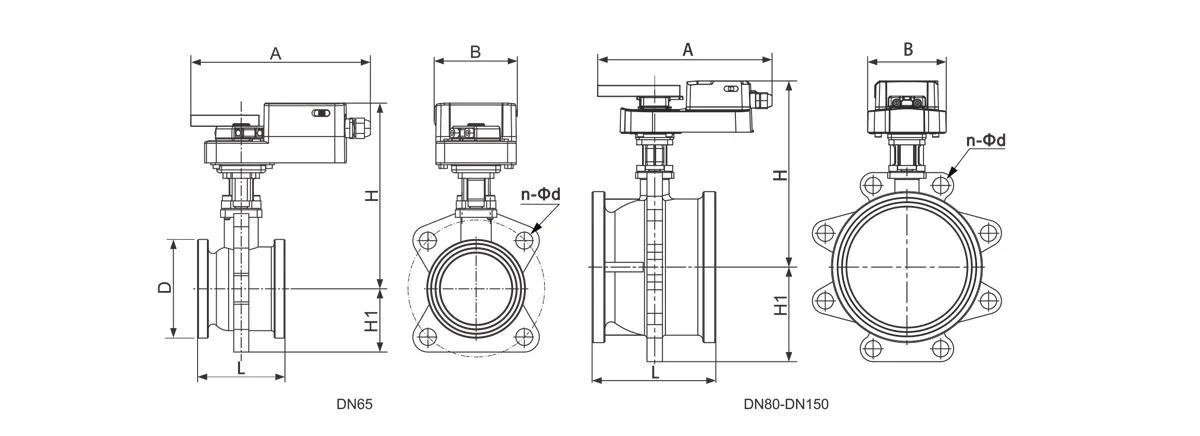

Dimension

DN Connection Thread G H (mm) H1 (mm) L (mm) L1 (mm) D (mm) W(mm)
DN15 G1/2 120 15 60 31 160 85
DN20 G3/4 120 18 70 32 160 85
DN25 G1 122 21 88 44 160 85
DN32 G1-1/4 123 26 101 50 160 85
DN40 G1-1/2 124 30 109 53 160 85
DN50 G2 124 37 125 70 160 85

Wiring of on/off Control

Wiring of Aux. Switch

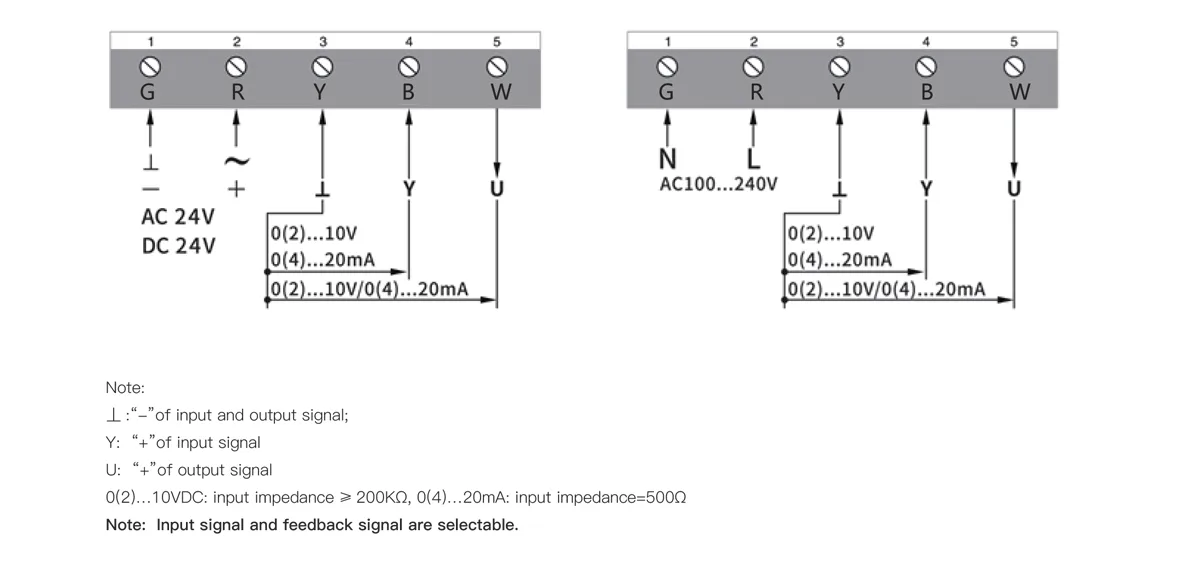

Wiring of Proportional Coontrol
