HA209
HA209

HA209 Series Standalone Hydronic Heating Thermostat

The HL209 is a highly cost effective standalone hydronic heating thermostat with basic and stable functionalities.

Download
Features Technical Data Model List Wiring Diagram Installation Instructions

Features

Press Button

Anti-Freezing

Upon Power Restoration

White Backlight

Technical Data

    Room Temp Accuracy: ±1°C
    Display Temp Resolution : 0.5°C
    Environmental:
        Operating Temperature Range: 0~45°C;

        Operating Humidity Range: 5-95% RH

    Power Consumption: <2 W
    Power Supply: AC85-250V, 50/60Hz
    Terminations: one 2.5mm2 or two 1.5mm2 wires

    Max Load Current: <2A (resistive), <1A (inductive)

    Dim. H x W x D(mm):86x86xl1
    Mounting Hole Dim.: 60mm
    Protection Class: IP30

Model List

Model Connectivity Type of Actuator IR Remote
Control		 OnOff
Timer		 Schedule Backlight Remote
Sensor		 Note
RS-485 Wi-Fi 2-wire 3-wire 5-2(4 Periods)
HA209 √ √ Hydronic
HA209-L √ √ √

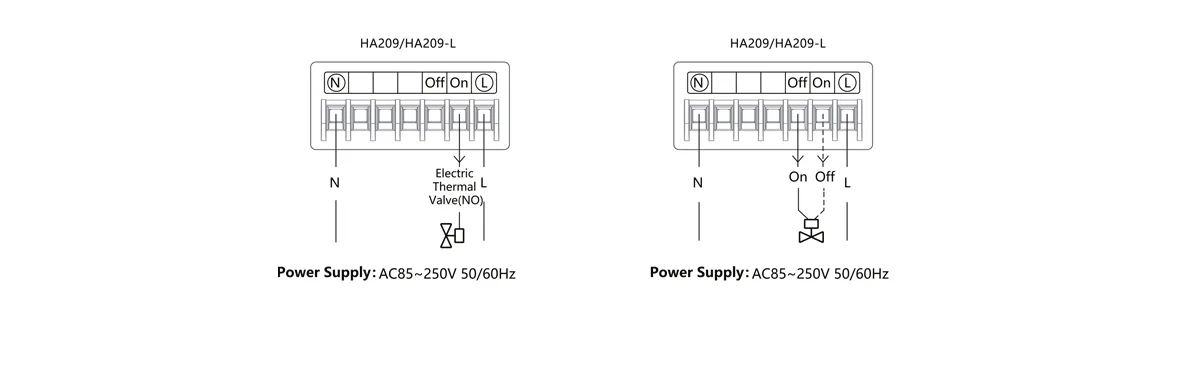

Wiring Diagram

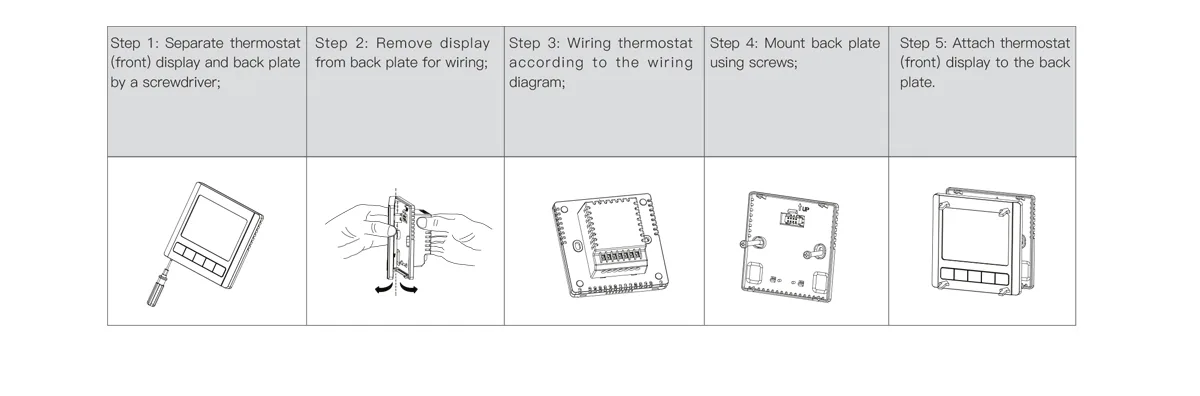

Installation Instructions
