JTF2000 Series Static Balance Valve

Inquiry

Download

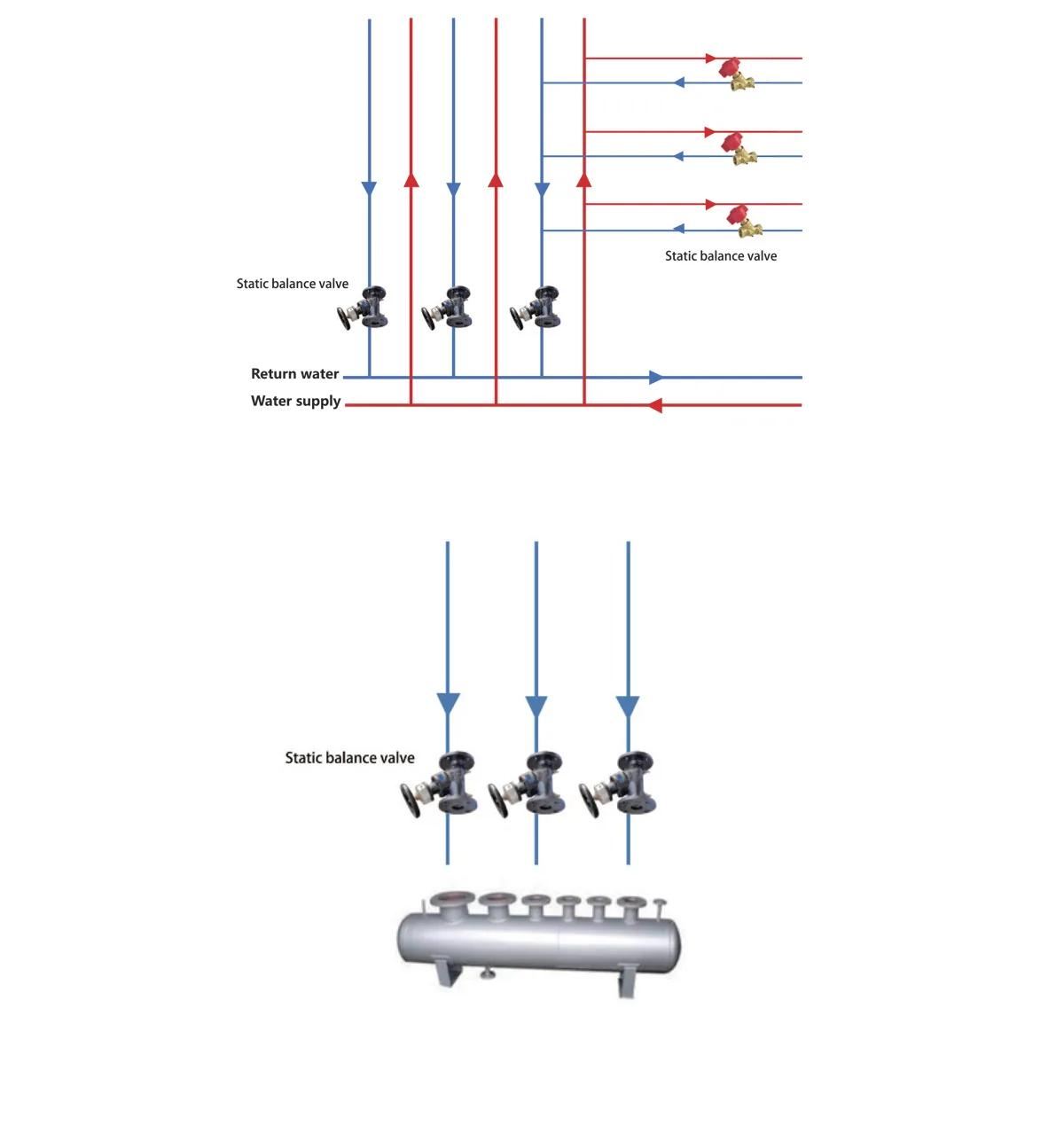

Features Specifications Pressure and Temperature Dimension Flow Coefficient and Circle No. of Handwheel Installation Diagram APPLICATION

Features

Applicable to constant flow water system in heating or refrigeration and balance the flow

Shut-off function integrated, can replace the globe valve

Stroke locking function integrated. The function can be opened after the system debugging. When the valve needs to beclosed for pipeline maintenance and overhaul, record the number of turns corresponding to the opening of the currentvalve before closing After maintenance, open the valve again to the recorded number of turs, thus secondary debuggingcan be avoided.

Equipped with measuring connect or to facilitate the quick connection with measuring equipment and save debugging time

Can be installed in the water supply or return pipeline

Specifications

Pressure	PN16	Stem	Stainless steel
Working differential pressure	0.05MPa~0.5MPa	Seat sealing	PTFE
Flow characteristics	Equal percentage	Stem nut	Brass
Valve body	brass (thread connection) ductile cast iron (flange connection)	Handwheel	ABS (Thread connection) WCB (Flange connection)
Bonnet	brass (thread connection) ductile cast iron (flange connection)	Pressure test tap	Brass

Pressure and Temperature

Nominal pressure	PN16
Medium temperature	-10℃~120℃
Test pressure	Valve Body: 2.4MPa
Test pressure	Seat sealing:1.6MPa

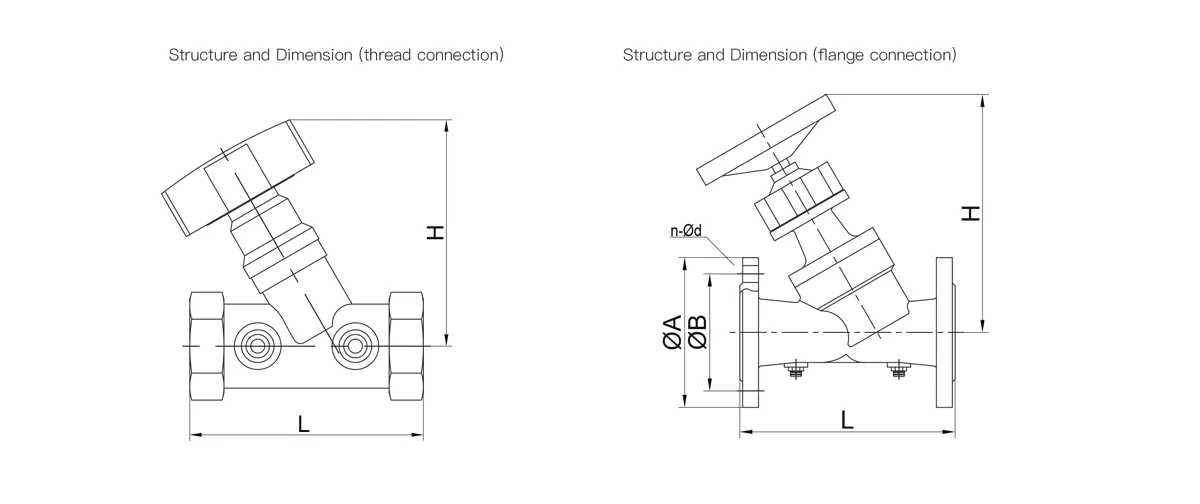

Dimension

DN	L (mm) Valve Body Length	H (mm) Height	Connection Thread (inch)
DN15	63	90	G 1 / 2
DN20	75	100	G 3/4
DN25	90	100	G 1
DN32	90	100	G 1-1/4
DN40	95	115	G 1-1/2
DN50	103	115	G 2

DN	L (mm) Valve Body Length	H (mm) Height	Flange outer diameter	B (mm) Bolt hole center	n-Φd Flange holes
DN32	180	183	135	100	4-Φ18
DN40	200	193	145	110	4-Φ18
DN50	230	236	160	125	4-Φ18
DN65	290	280	180	145	4-Φ18
DN80	310	340	195	160	8-Φ18
DN100	350	371	215	180	8-Φ18
DN125	400	400	245	210	8-Φ18
DN150	480	510	280	240	8-Φ23
DN200	495	650	335	295	12-Φ23
DN250	622	620	405	355	12-Φ25
DN300	698	730	460	410	12-Φ25
DN350	787	770	520	470	16-Φ25
DN400	914	780	580	525	16-Φ30
DN450	914	780	640	585	20-Φ30
DN500	978	840	705	650	20-Φ30
DN600	1295	890	840	770	20-Φ41

Flow Coefficient and Circle No. of Handwheel

JTF2000-T

Kv / DN / Circles	1	2	3	4	5
DN15	0.16	0.37	0.87
DN20	0.28	0.64	1.52	3.5
DN25	0.36	0.82	1.91	4.5
DN32	1.6	4.3	7.7	11.2	13.6
DN40	2.5	5.7	11.9	16.3	20.8
DN50	4.4	10.9	17.2	26	34.2

JTF2000-T

Kv / DN	Circles 1	2	3	4	5	6	7	8	9	10	11	12
DN15	0.16		0.37		0.87
DN20	0.28		0.64		1.52		3.5
DN25	0.36		0.82		1.91		4.5
DN32	1.6		4.3		7.7		11.2			13.6
DN40	2.5		5.7		11.9		16.3			20.8
DN50	4.4		10.9		17.2		26			34.2
DN32	0.96	1.82	3.58	7.1	14
DN40	1.71	3.25	6.4	12.7	25
DN50	2.97	5.17	9.15	16.5	21	50
DN65	5.1	8.29	14.4	22.24	35.8	58	95
DN80	7.56	12.2	21.2	32.7	52.7	85.4	140
DN100	10.7	15.6	22.8	33.26	48.3	70.3	102	147.7	220
DN125	17	24.9	36.3	52.9	76.8	112	163	235	350
DN150	21.1	27.9	38	49.8	64.9	87.8	116	153	209	267	356	480
DN200	44	58	79	104	135	183	241	320	435	569	741	1000
DN250	57.2	75.5	103	135	176	238	314	416	566	740	963	1300
DN300	88	116	158	208	270	336	482	640	870	1138	1482	2000
DN350	119	157	214	280	365	494	652	862	1174	1537	2000	2700
DN400	154	203	278	363	473	640	845	1119	1522	1992	2593	3500
DN450	250	330	450	592	770	1043	1374	1824	2480	3243	4224	5700
DN500	308	406	553	728	945	1281	1687	2240	3045	3983	5187	7000
DN600	445	586	798	1050	1364	1848	2434	3232	4394	5747	7484	10100
