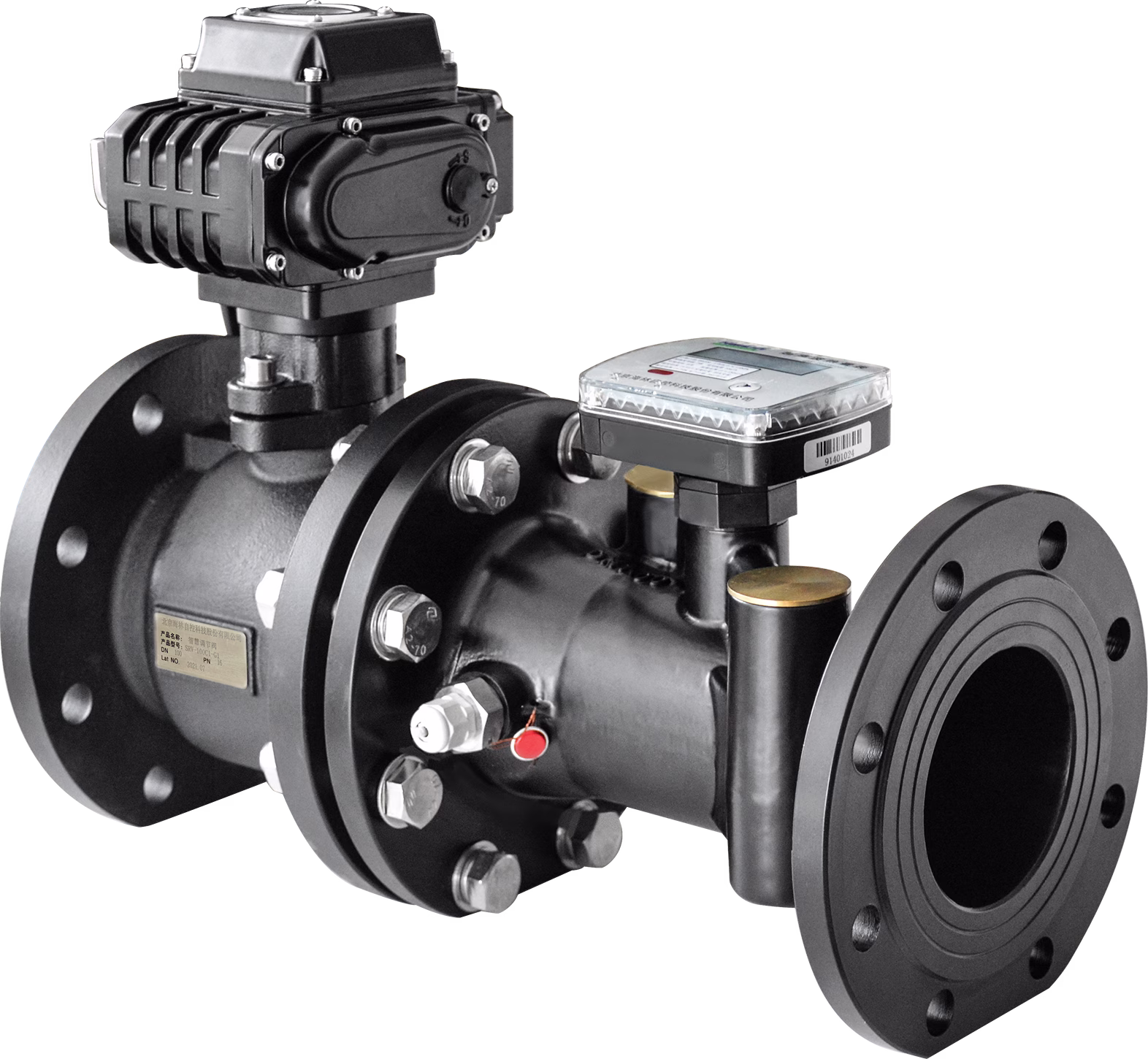

SRV Series Ductile Cast Iron Intelligent Balance Valve

SRV series intelligent balance valve is integrated with sensors, intelligent actuator and regulation valve. It is applicable to central air conditioning system and heating system. The regulating valve receives the control signals from PLC, DDC and other controllers, compares with the real time values from
local sensors (temperature sensor, pressure sensor, flow sensor, and etc.),and make judgment and adjustment accordingly. Thus it realizes accurate control of the temperature, pressure, flow or energy.

Download
Certification Marks
Features Specifications of Actuator Specifications of Valve Body Installation Diagram Application

Features

Remote controllable via upper computer
Programmable with RS-485, automatic opening adjustment
Automatic valve status detection, anti-seize design
Manual operation available

IP67, high protection level. IP68 is customizable

90° rotation, quick opening/closing, good adjustment
performance

Push type terminal block, easy for wiring
Bluetooth available, monitoring via APP on mobile phone

Specifications of Actuator

Torque 50Nm
Power Supply 24VDC
Rated Current 2.4A
Sensitivity ±1.0%
Basic Deviation +1.0% (of valve stroke)
Frequency 50/60 Hz
Dperating Time 20s (0 load, from fully clo sed to fully open)
Cable 0.5mm2 ~ 1mm2
Communication RS-485/ M-bus
Protocol Modbus/188
Control Mode （Only one mode can be selected at the same time) 1 Return temperature control (Basic) 2 Differential temperature control 3 Pressure control 4 Differential pressure control 5 Flow control 6 Energy control
Precision of Temperature Control +1.0°C
Cooling/heating Changeover Automatic (cooling when the water inlet temperature is <35 °C,otherwise heating)
Temperature Sensor DS18B20
Wireless Control Bluetooth, APP (for Android only)
Manual Operation Available
Ambient Temperature 25°C ~ +65 °
Protection Degree IP67 (IP68 customizable)

Specifications of Valve Body

Nominal Pressure PN16
Applicable Medium Hot/cool water, ethylene glycol aqueous solution with concentration s50%
Adjustable Ratio 100:1
Flow Characteristics Equal percentage
Leakage Rate No visible leakage
Stroke Angular stroke (90 ")
Medium Temperature 10°C - 20°C
Mounting On return water side
Material of Main Parts Valve Body Ductile Cast Iron（DN40 -DN150）
Ball SS304
Seat PTFE + Graphite
Stem SS304
O Ring Sealing EPDM

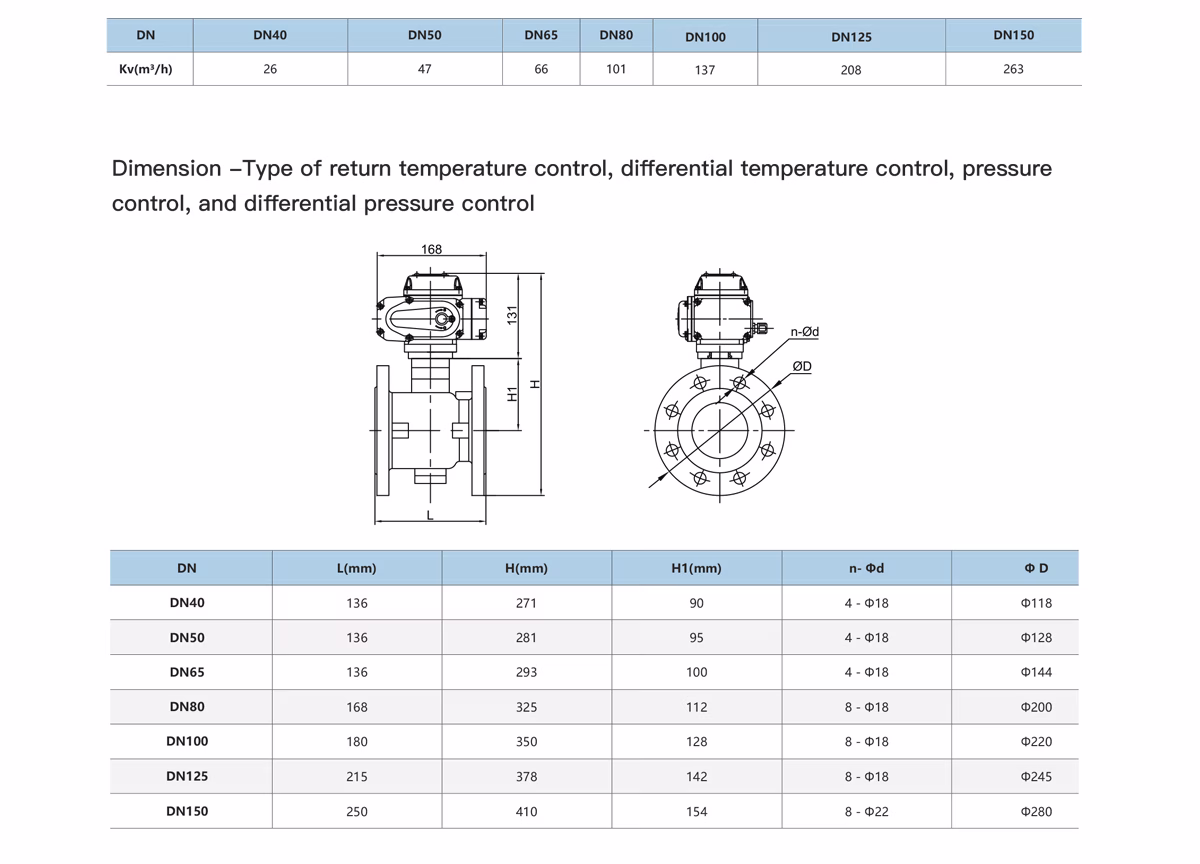

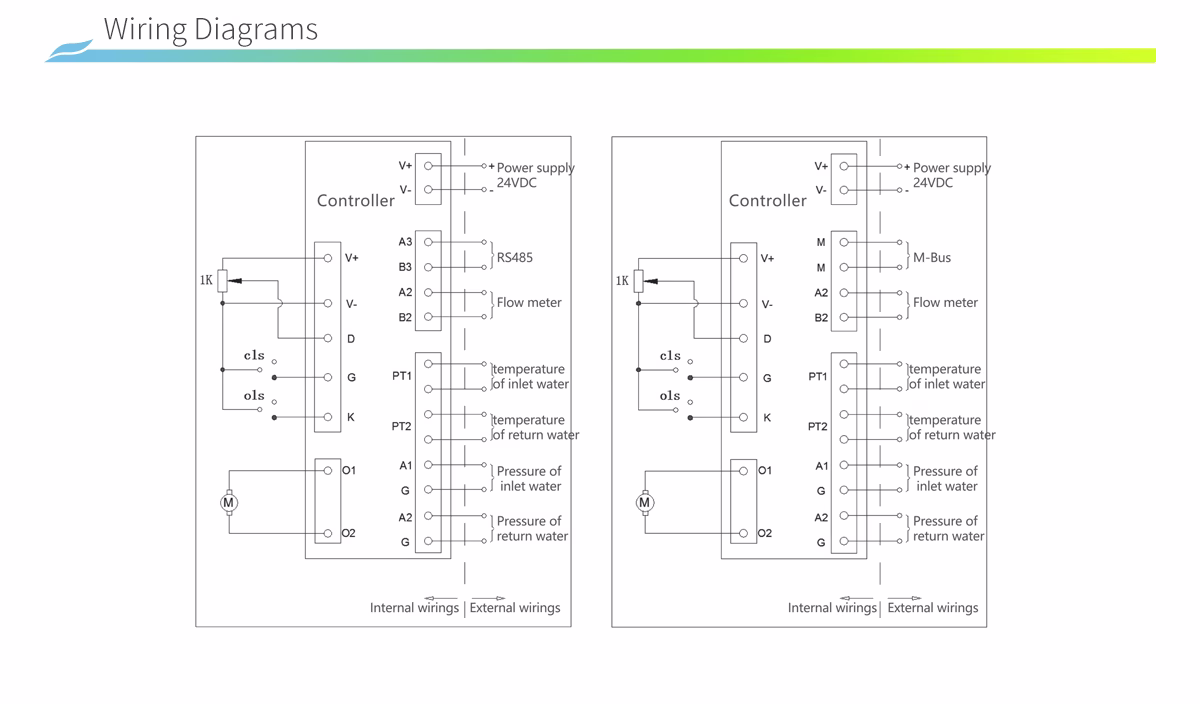

INSTALLATION DIAGRAM

APPLICATION
